ERDIS
ELDIS RADAR DISPLAY SYSTEM
ERDIS is a state-of-the-art Air Traffic Management Automation System developed by the company ELDIS Pardubice and designed for the civilian, military and civ/mil joint ATM centres. The ERDIS system supports surveillance and/or procedural air traffic control operations for En-route (ACC), Approach (APP) and Tower (TWR) control and planning air traffic services. System is designed for fail-safe 24/7 operation.
Key features

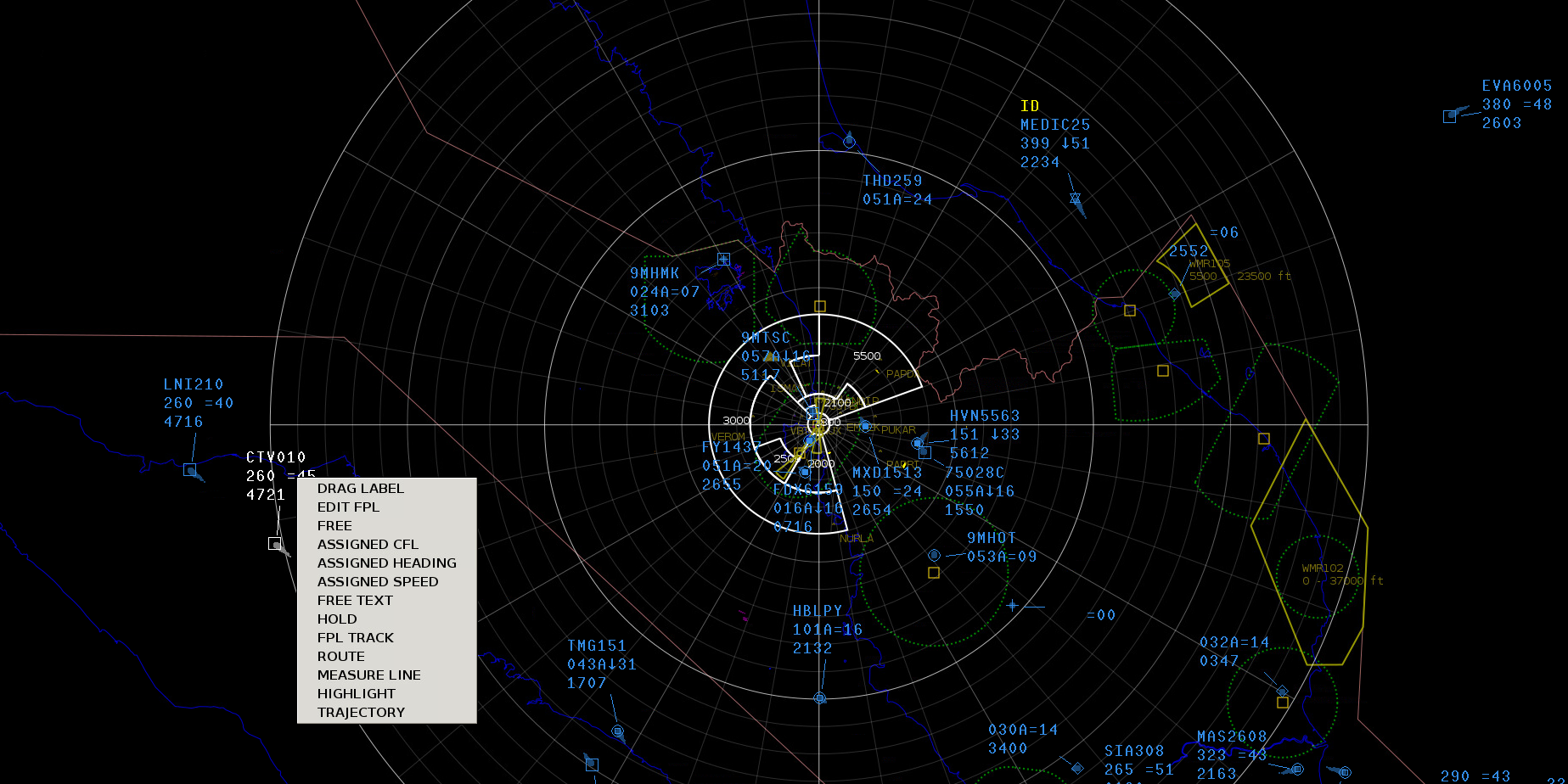

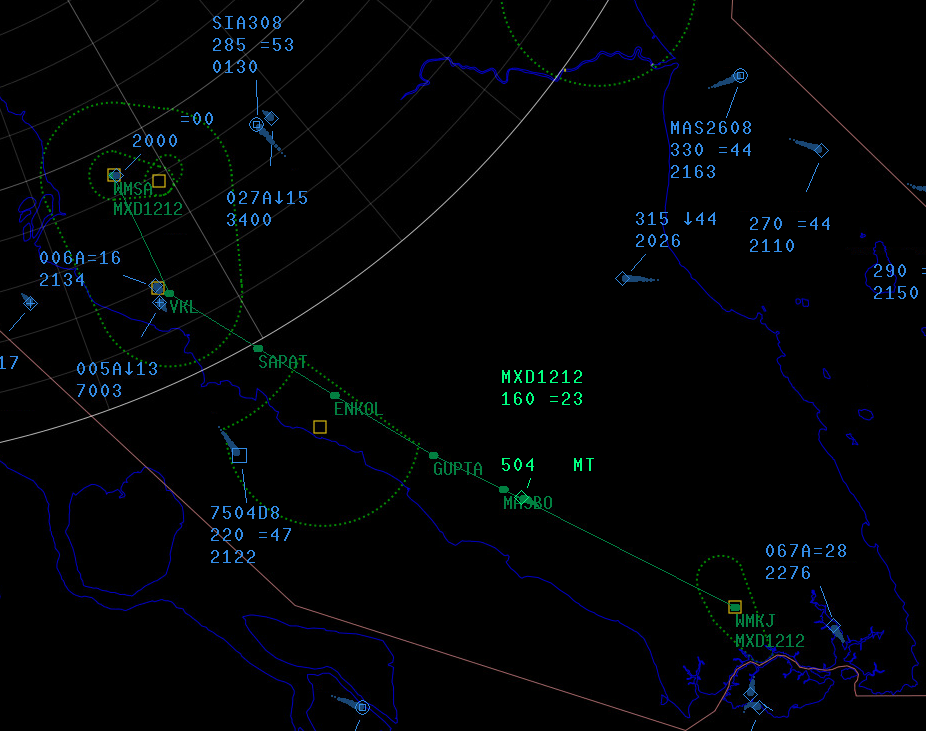

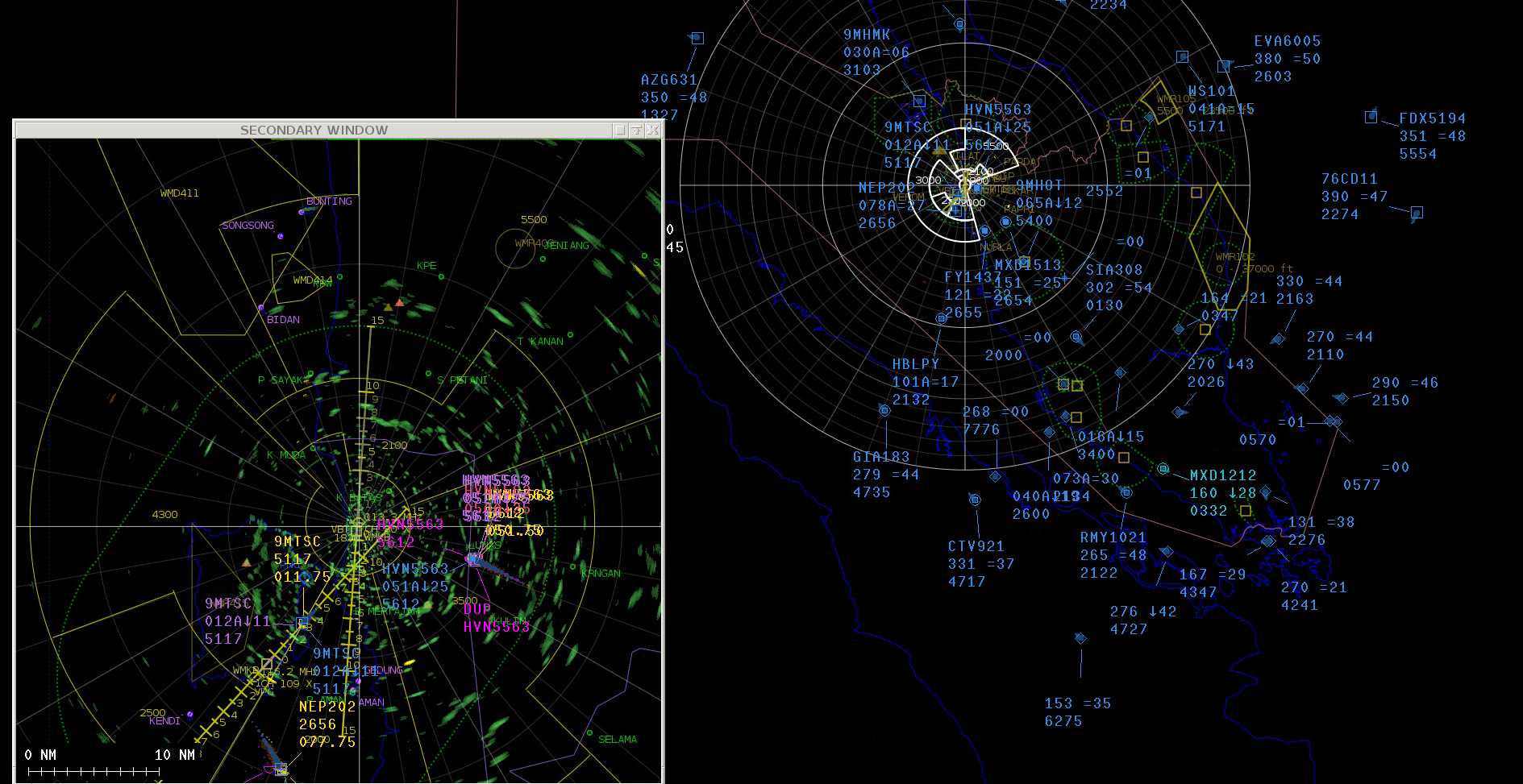

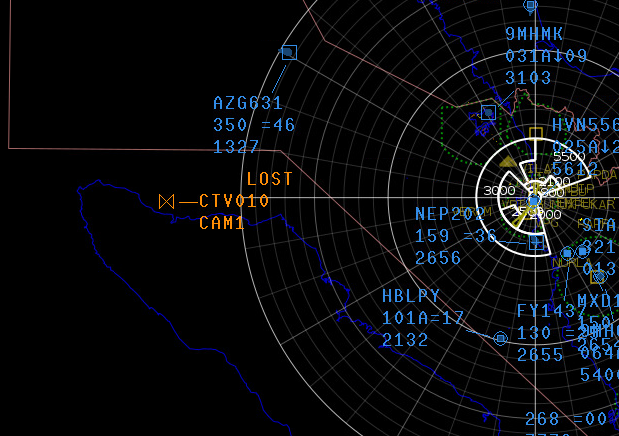

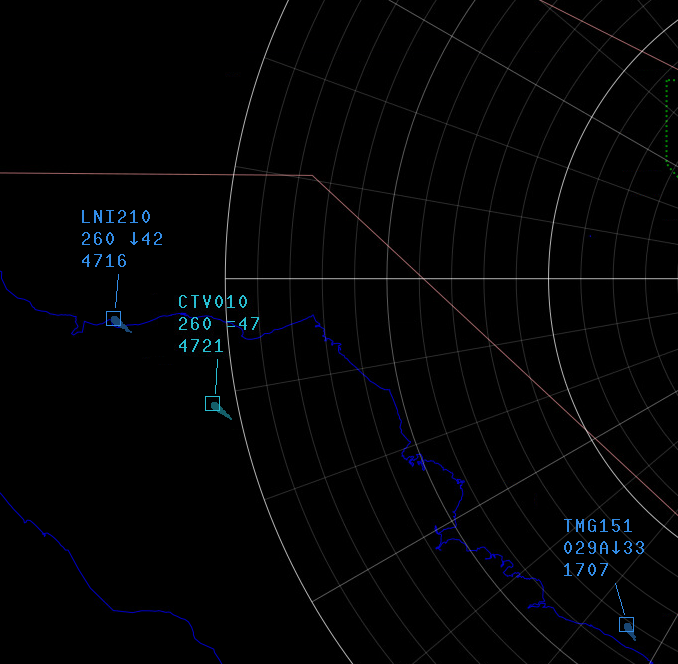

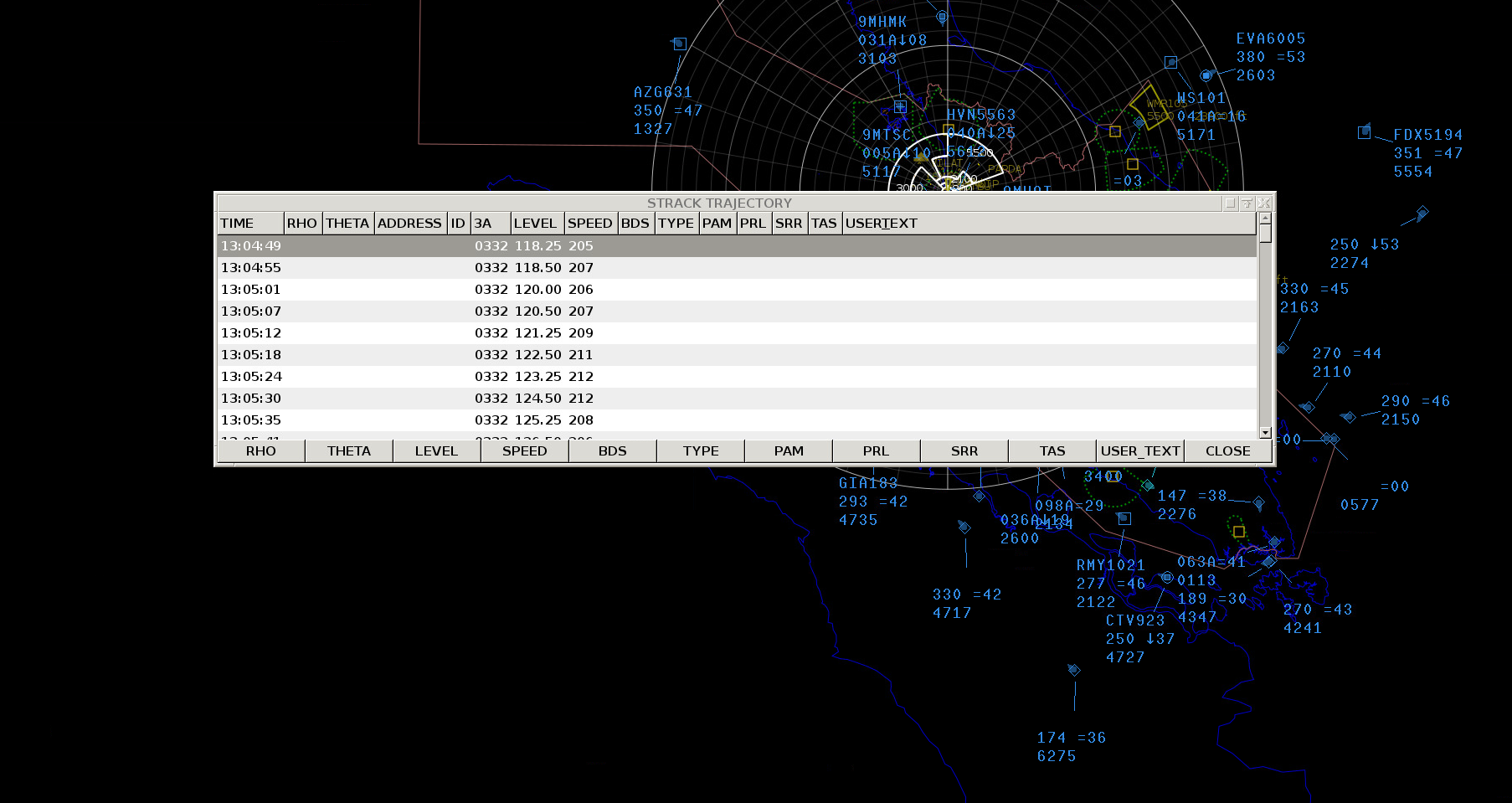

Integrated air picture of the controlled area.
- Receiving processed data from SDP and FDP, supplemented by aeronautical and meteorological information, tools for aircraft vectoring, geographic maps, etc.
- Operational, bypass, playback modes - system tracks, monoradar / ADS tracks, plots
- Incident Data recording – SDD/FDD screen recording
- Interactive/passive playback mode
- Receiving processed data from SDP and FDP, supplemented by aeronautical and meteorological information, tools for aircraft vectoring, geographic maps, etc.
- Operational, bypass, playback modes - system tracks, monoradar / ADS tracks, plots
- Incident Data recording – SDD/FDD screen recording
- Interactive/passive playback mode

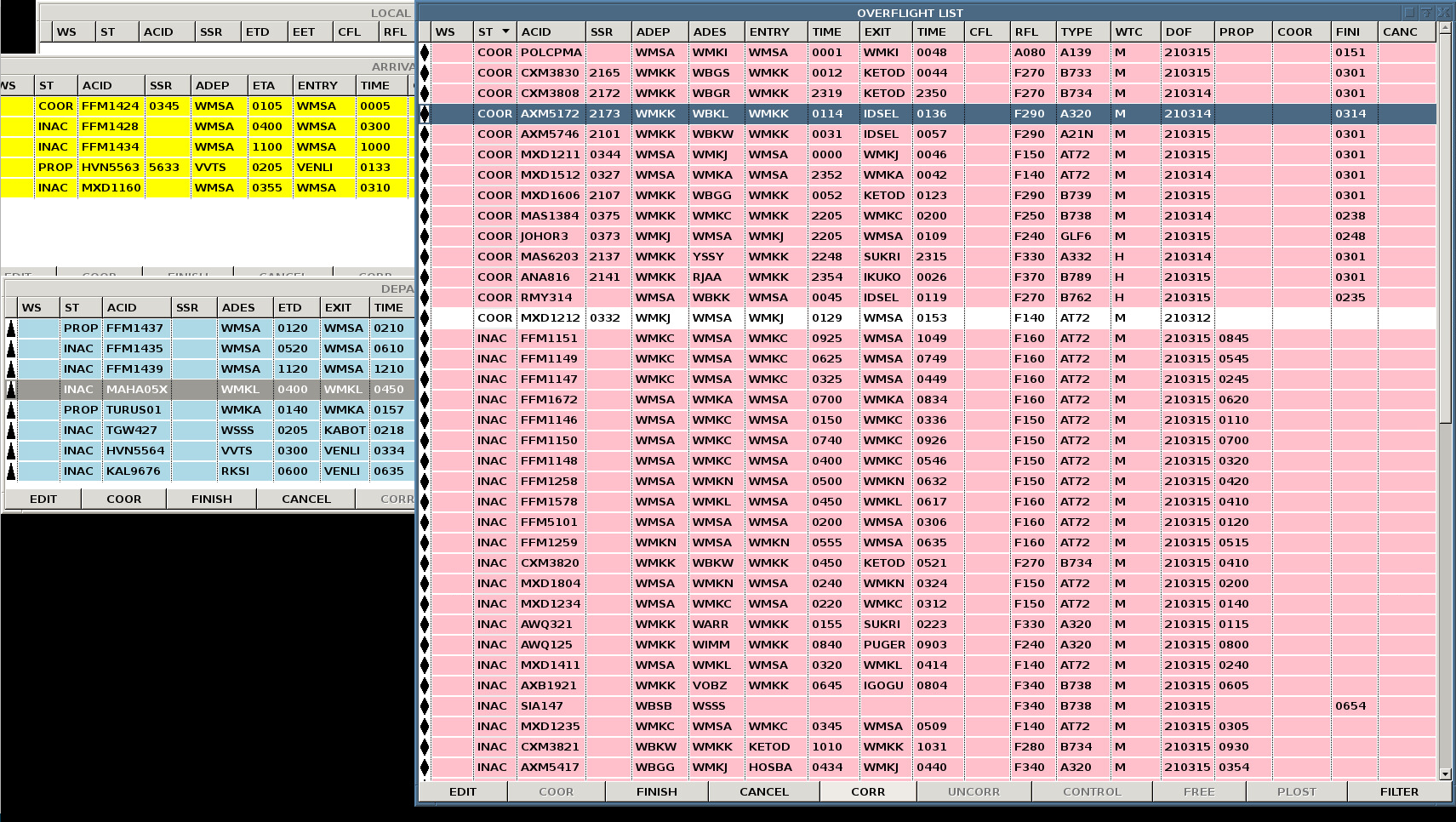

Integrated environment for Flight Plan Management.
- Management of all information related with flight plans, AFTN messages, restricted areas, etc.
- Allows the operator to handle flight plans data during entire lifecycle of FPL in ATM system
- Provides GUI for all types of user defined Information data (automatically or manually received/entered)
- Electronic strips display support
- Management of all information related with flight plans, AFTN messages, restricted areas, etc.
- Allows the operator to handle flight plans data during entire lifecycle of FPL in ATM system
- Provides GUI for all types of user defined Information data (automatically or manually received/entered)
- Electronic strips display support
Multi sensor tracking system.
- Supported surveillance sensors: PSR/(M)SSR radars, ADS-B, WAM, MLAT, ADS-C etc.
- Supported input formats: ASTERIX formats, AIRCAT, CD/2, all other formats delivered with ICD
- Integration with surface movement radar
- Track - FPL automatic/manual correlation
- Emergency SSR codes processing
- Output data format: System tracks and safety nets in ASTERIX format (Dual)
- Redundant system with automatic or manual MASTER/STANDBY switching
- Safety Nets: Processing of STCA, MSAW, APW and APM warnings, MTCD conflicts processing
- Supported surveillance sensors: PSR/(M)SSR radars, ADS-B, WAM, MLAT, ADS-C etc.
- Supported input formats: ASTERIX formats, AIRCAT, CD/2, all other formats delivered with ICD
- Integration with surface movement radar
- Track - FPL automatic/manual correlation
- Emergency SSR codes processing
- Output data format: System tracks and safety nets in ASTERIX format (Dual)
- Redundant system with automatic or manual MASTER/STANDBY switching
- Safety Nets: Processing of STCA, MSAW, APW and APM warnings, MTCD conflicts processing
Flight data and information data processing system.
- Flight Data Processor FDP AFTN, AHMS, ADEXP data reception and processing
- OLDI, AIDC inter centres coordination data processing
- Local flight plans creation and processing
- Route analysis and 4D trajectory calculation
- Information data processing METAR, SPECI, TAF
- Weather data processing from local meteo station
- SSR code management
- Sectorisation and hand-over functions
- Restricted areas management
- Dual redundant system with automatic or manual MASTER/STANDBY switching
- Flight Data Processor FDP AFTN, AHMS, ADEXP data reception and processing
- OLDI, AIDC inter centres coordination data processing
- Local flight plans creation and processing
- Route analysis and 4D trajectory calculation
- Information data processing METAR, SPECI, TAF
- Weather data processing from local meteo station
- SSR code management
- Sectorisation and hand-over functions
- Restricted areas management
- Dual redundant system with automatic or manual MASTER/STANDBY switching
24/7 uninterrupted recording of voice communications, all types of video and digital data.
- Data recording to standard HDD Mirror Storage or Hot-Swap HDD Storage
- Minimum 30 days storage capacity on local HDD
- Possibility to back-up on External media
- Interactive/passive playback mode – export to conventional audio/video *.avi format
- Data recording to standard HDD Mirror Storage or Hot-Swap HDD Storage
- Minimum 30 days storage capacity on local HDD
- Possibility to back-up on External media
- Interactive/passive playback mode – export to conventional audio/video *.avi format
Operational and Maintenance Supervisor functions.
- Complex Online Diagnostics and Controlling System for ATM System and its Support Tools
- Surveillance sensors monitoring and management
- System maps management

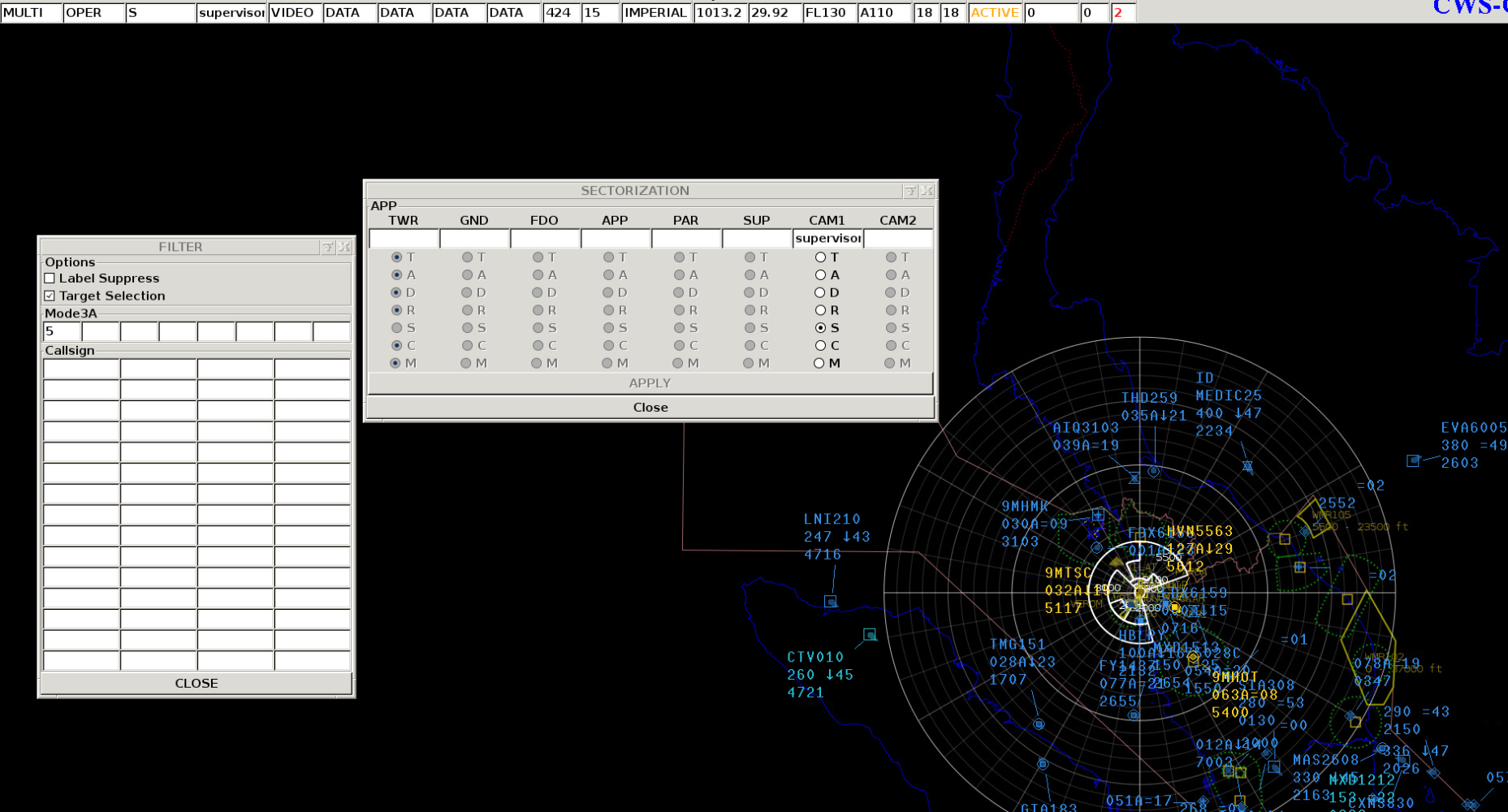

- Graphical user interface for sectorisation
- Complex Online Diagnostics and Controlling System for ATM System and its Support Tools
- Surveillance sensors monitoring and management
- System maps management
- Graphical user interface for sectorisation
download
Gallery
References
Worldwide More than 25 Countries served by ELDIS Pardubice s.r.o. with supply and services. In India we are serving and under installation 32 Sites . National service center In Delhi -SMU Established to serve locally all sites in India.
