RLP-2000 RADAR SET

ELDIS AIRPORT RADAR SET

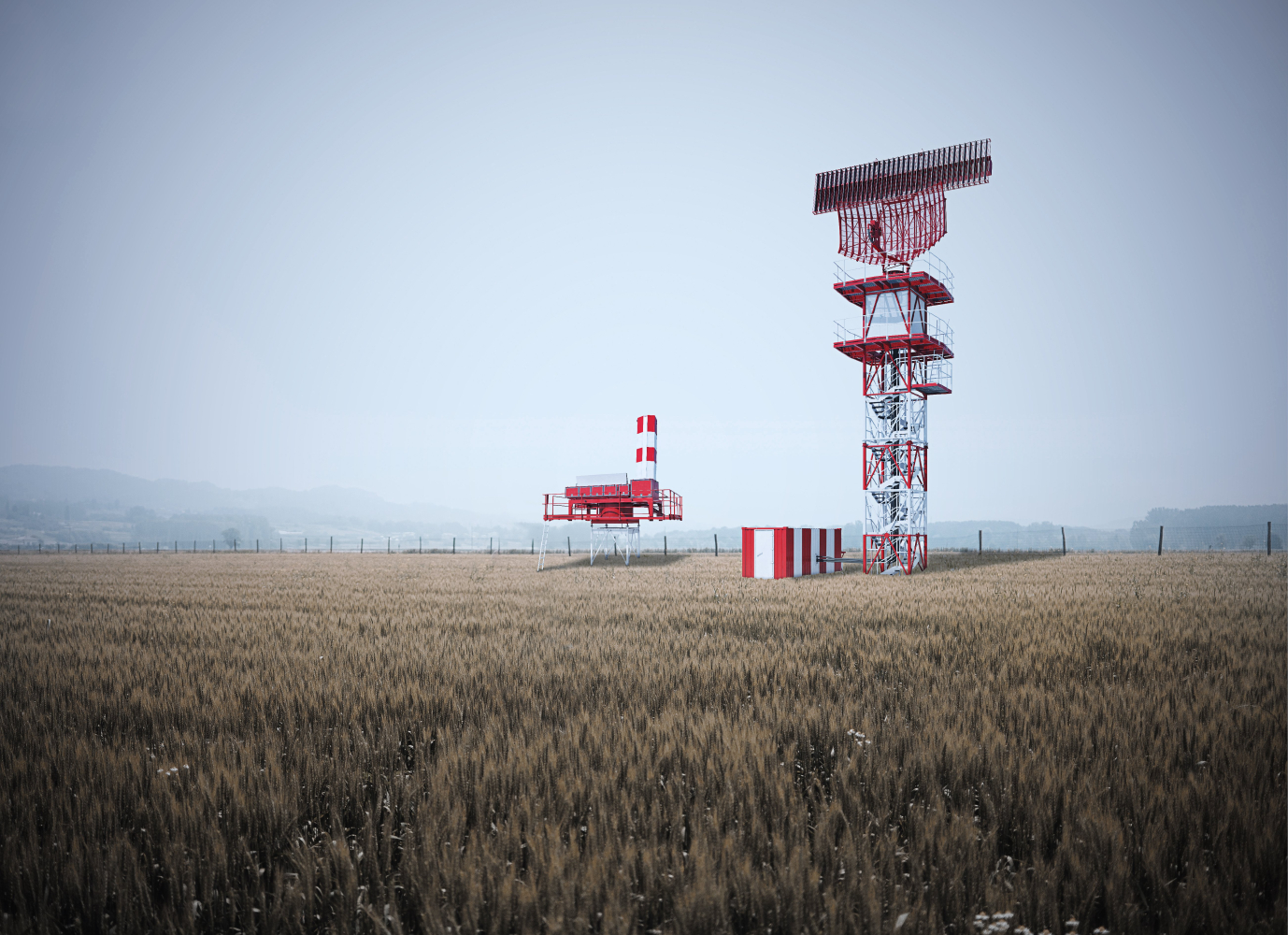

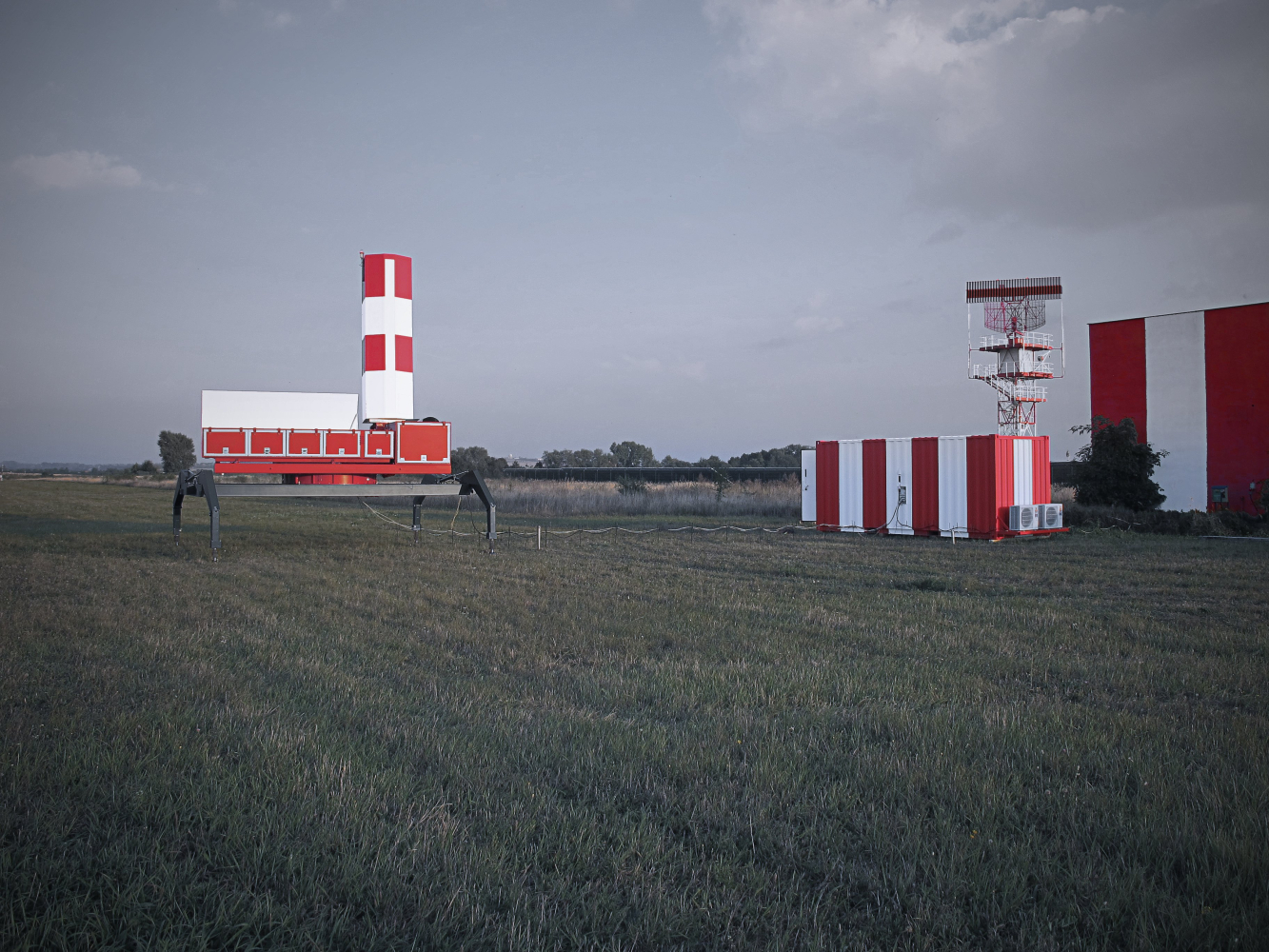

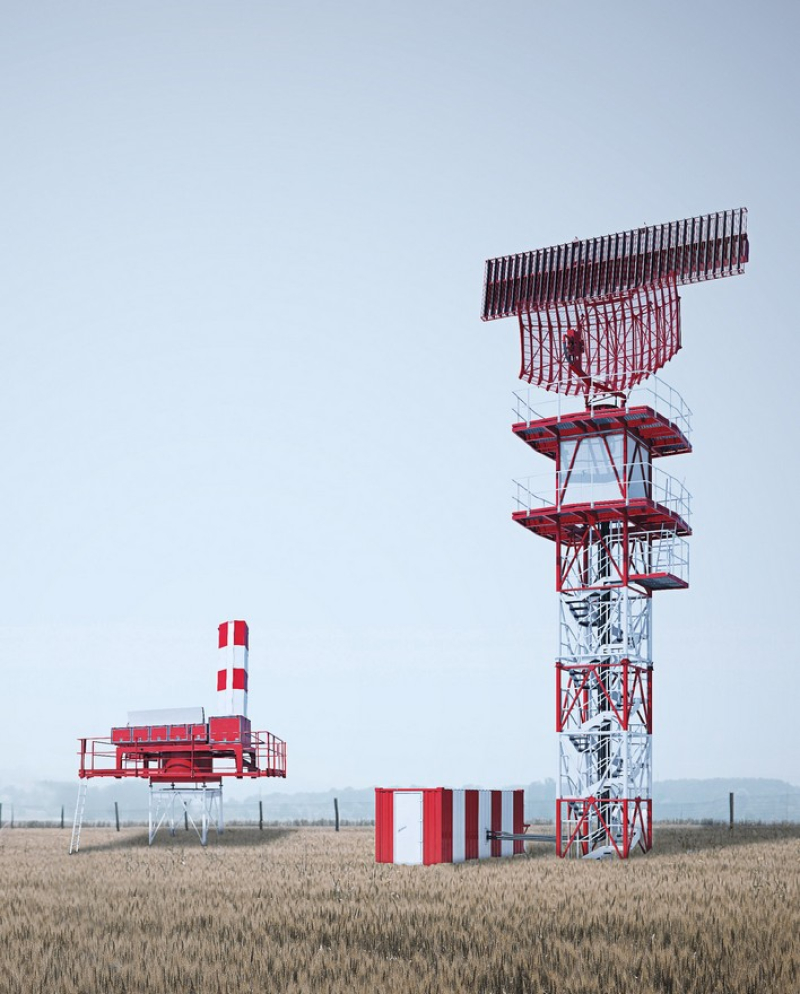

The RPL-2000 is a complete set of all ELDIS active radars. It is designed to provide complete solution for Air Traffic Control or Air Defence. The RPL-2000 radar set consists of Primary Surveillance Radar RL-2000, Secondary Surveillance Radar MSSR-1 and Precision Approach Radar PAR-E. The radar set is also enhanced by ERDIS Air Traffic Management Automation System and mobile control tower.

The RPL-2000 radar set follows the tradition of proven concept of complete airport radar solution and represents the next generation of the RPL-5M radar sets, produced by company ELDIS Pardubice. The set is based on common standards and modular design, but uses the cutting-edge, fully solid-state technology, resulting in excellent radar parameters and long lifecycle of the radar equipment.

The RPL-2000 radar set could be also installed as a fixed version.

Key features

ERDIS

ERDIS is a state-of-the-art Air Traffic Management Automation System developed by the company ELDIS Pardubice and designed for the civilian, military and civ/mil joint ATM centres. The ERDIS system supports surveillance and/or procedural air traffic control operations for En-route (ACC), Approach (APP) and Tower (TWR) control and planning air traffic services. System is designed for fail-safe 24/7 operation costs.

RL-2000

RL-2000 is the latest generation of ELDIS primary surveillance radars for Terminal Approach Control Area. The radar meets or exceeds EUROCONTROL and ICAO standards and recommendations. RL-2000 features a fully solid-state highly modular configuration a fail-safe system and low life cycle costs. RL-2000 can be customized to meet specific customer requirements.

MSSR-1

The Monopulse Secondary Surveillance Radar is a fully modular system, which meets or exceeds ICAO and MARK X recommendations and standards and allows extension according to increasing customer needs. Individual modules of the equipment can be used either in new or in older MSSR systems.

PAR-E

The PAR-E precision approach radar provides important support for the approach…

Mobile ATC Tower

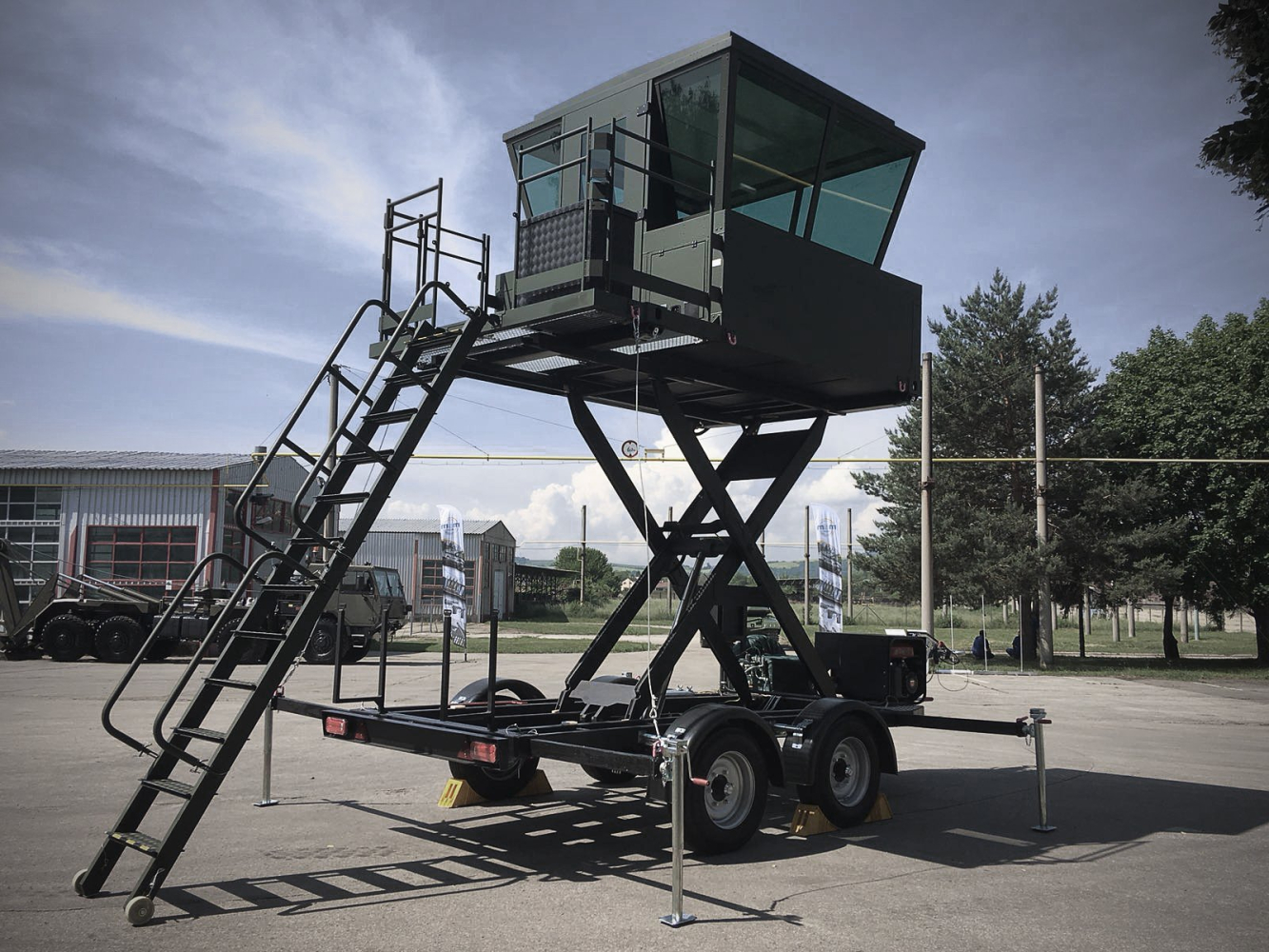

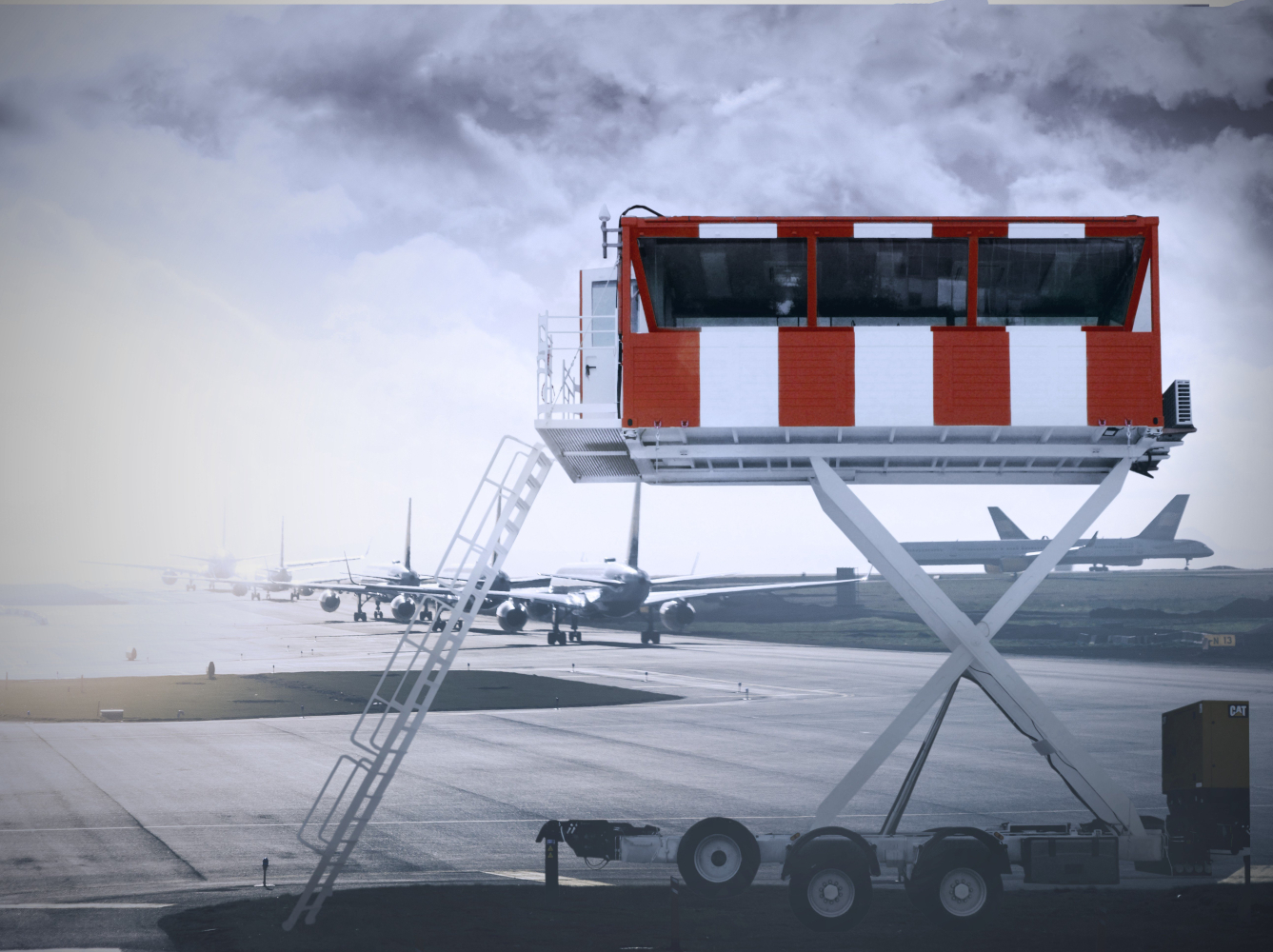

Mobile Air Traffic Control Tower serves for navigation and air traffic control at provisional air stripes. Navigation is possible for various aircrafts depending on the equipment installed, available radars and systems for air traffic control connectivity and interoperability. Each Control Tower can be manufactured specifically for the customer.

Control and Monitoring System (CMS-CAM)

Each system equipment or unit is fitted with independent BITE diagnostics to carry out performance monitoring and automatic system backup changeover at system level. LCMS is located on radar site, RCMS can be located in remote technical room in Control tower (TWR), etc. The CMS consist of monitors radar status and performance and allows the authorized personnel to control and adjust radar configuration and parameters remotely. CMS incorporates a user-friendly graphical interface which is used for data and status presentation.

BASIC PARAMETERS

RL-2000 is S-Band surveillance radar
RL-2000 is produced in versions with minimal range 60, 80 or 100 NM
The radar is equipped by linear, circular or elliptical polarization
RL-2000 is capable of excellent detection ensured by frequency diversity (up to four frequencies) and PCR of long pulses
Scanning speed up to 15 RPM with 256 NM coverage in ELS and EHS-S
The output power of the transmitter (impulse) is at least 2 500 W
Altitude coverage 35 000 / 66 000 ft
Operation in II / SI code with EUROCONTROL certification (EC 262/2009)
Mode S Clustering ability
Receiving ADS-B data from detected signals
Independent four-channel ADS-B system with 360° coverage
PAR-E is a precision approach radar operating in the X-band with a range of up to 40 km operating on the principle of electronic scanning AESA. The radar excels in in low maintenance requirements
The mobile control tower has a maximum height of 8 620 mm with a floor height of 6 000 mm above the ground. During transport, the maximum height is 2718 mm, width 2 550 mm and length 10 065 mm

Download

datasheet

Gallery

References

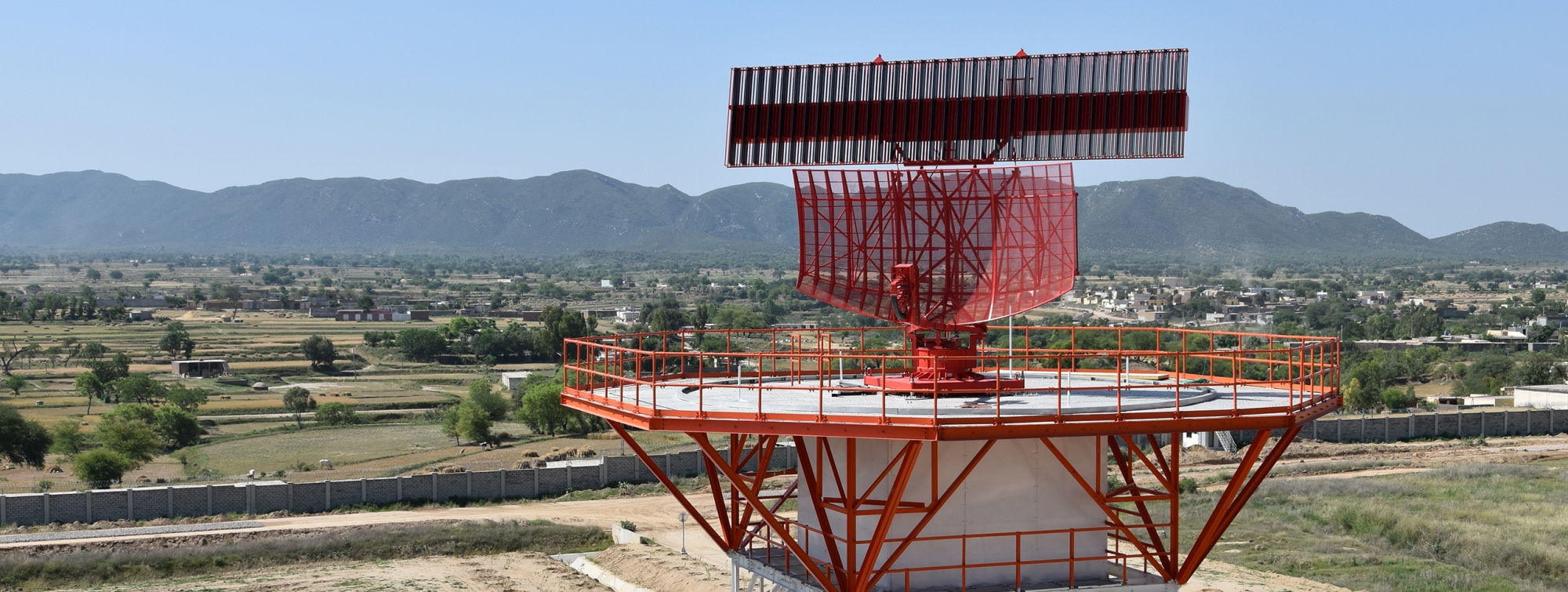

Worldwide More than 25 Countries served by ELDIS Pardubice s.r.o. with supply and services. In India we are serving and under installation 32 Sites . National service center In Delhi -SMU Established to serve locally all sites in India.
